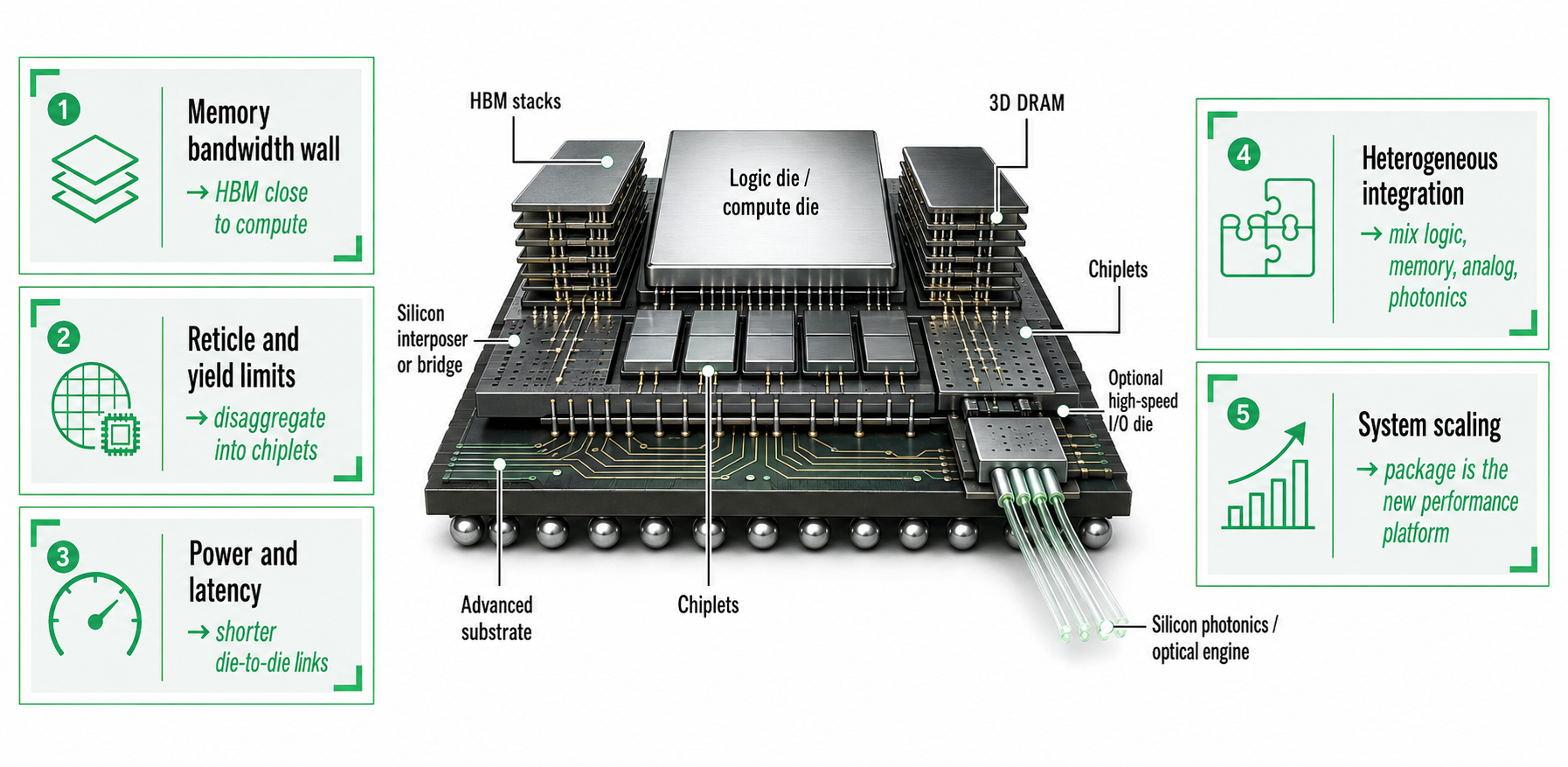

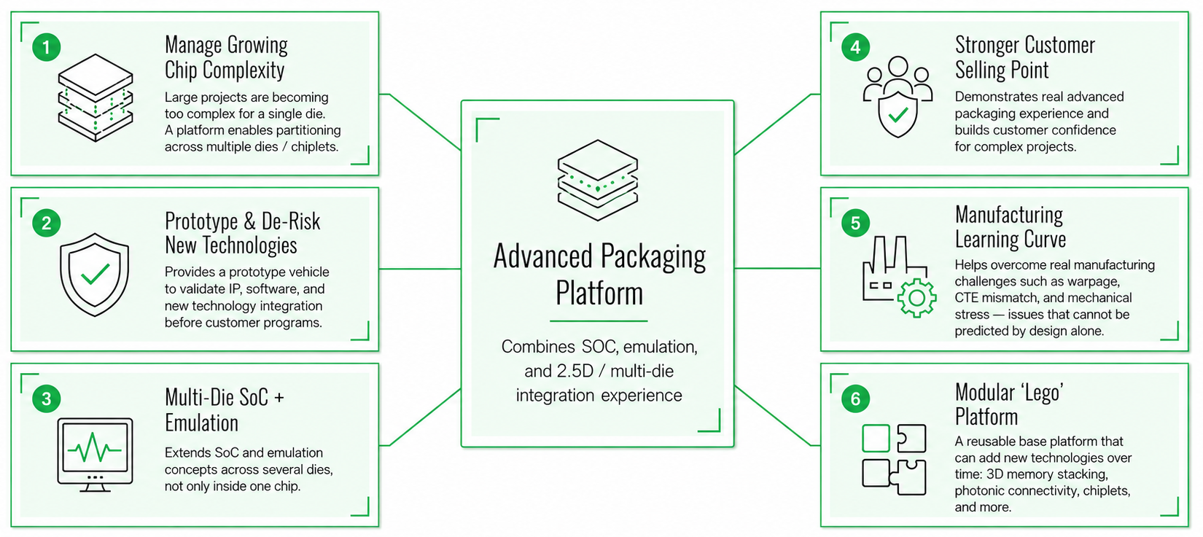

As semiconductor architectures evolve toward chiplets, heterogeneous integration, and multi-die systems, package design becomes a critical enabler of performance, scalability, and product success. Avnet ASIC's Advanced Packaging Platform helps customers reduce development risk, accelerate validation, and efficiently transition from concept to manufacturing using proven methodologies and industry-leading ecosystem partnerships.

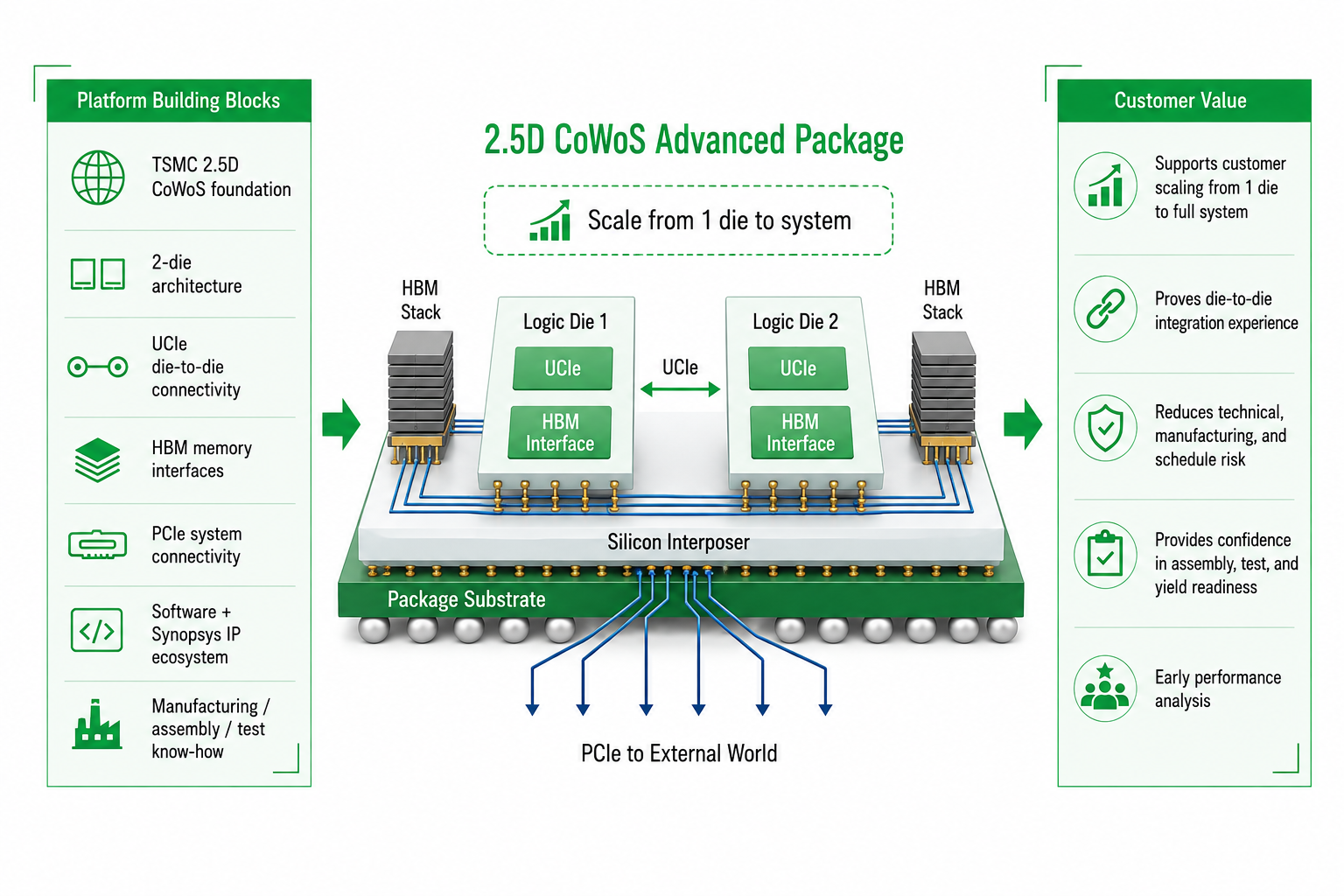

Avnet ASIC enables customers to leverage advanced 2.5D packaging technologies to build high-performance, scalable systems with confidence. Combining deep integration expertise, die-to-die connectivity, HBM implementation, and manufacturing readiness, we help transform complex silicon innovations into reliable products ready for volume production and market success.
